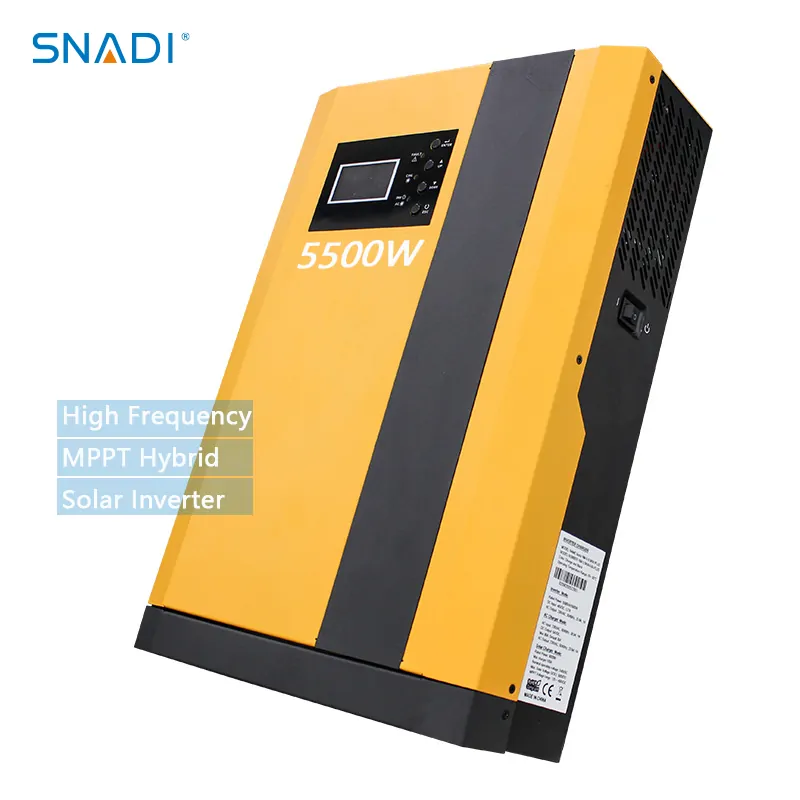

NKH-5500w
SNADI
| Rated Power | 3200w | 5000w | 3500w | 5500w |
| Input | ||||
| Voltage | 230VAC | |||
| Selectable | 170-280VAC(For Personal Computers) | |||
| 90-280VAC(For Home Appliances) | ||||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |||
| Output | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
| Surge Power | 6400VA | 10000VA | 7000VA | 11000VA |
| Efficiency(Pack)PV to INV | 97% | |||
| Efficiency(Pack)Battery to INV | 94% | |||
| Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |||
| Waveform | Pure sine wave | |||
| Battery&AC Charge | ||||
| Battery voltage | 24VDC | 48VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC | 27VDC | 54VDV |
| Vercharge Protection | 33VDC | 63VDC | 33VDC | 63VDC |
| Maximum Charge Current | 80A | 60A | 100A | 100A |
| Solar Charge | ||||
| Maximum PV Array Power | 4000w | 4000w(5000w Optional) | 5000w | 6000w |
| MPPT Range Operating Voltage | 120~450VDC | |||
| Maximum PV Open Circuit Voltage | 500VDC | |||
| Maximum Charging Current | 80A | 100A | ||
| Maximum Efficiency | 98% | |||
| Physical | ||||
| Dimension,D*W*H(mm) | 100*300*440 | |||
| Net Weight(kgs) | 9 | 10 | 11 | 12 |
| Communication interface | USB/RS323/GPRS/WIFI | |||
| Operating Envronment | ||||
| Humidity | 5%to95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0°C-55°C | |||
| Storage Temperature | -15°C-60°C | |||
FAQ
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
