750W hybrid small Solar inverter

Name: 750W hybrid small Solar inverter
Brand: SNADI
Rating: 5.0 (43 reviews)

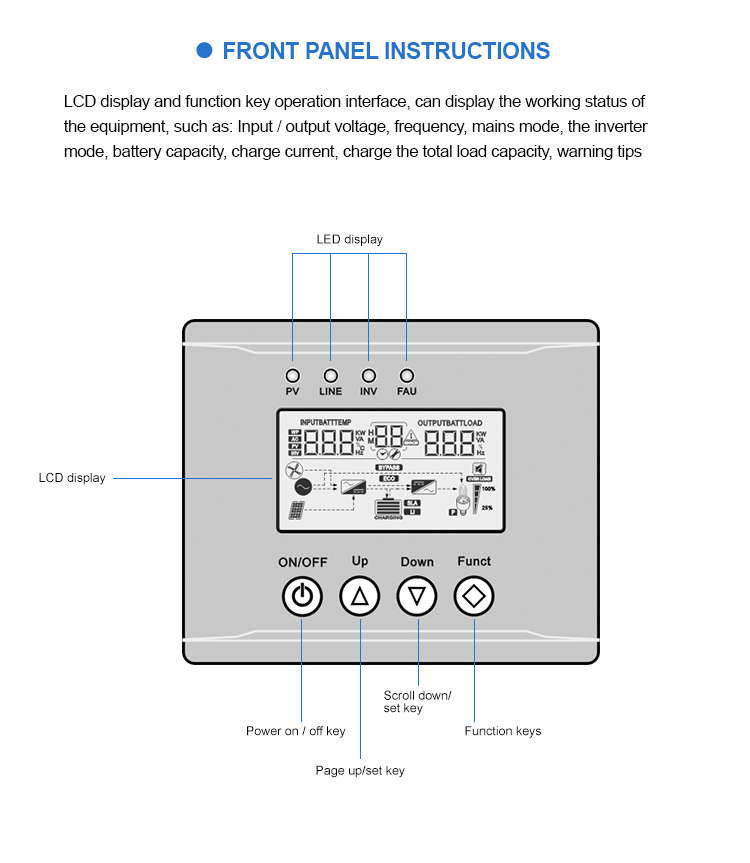

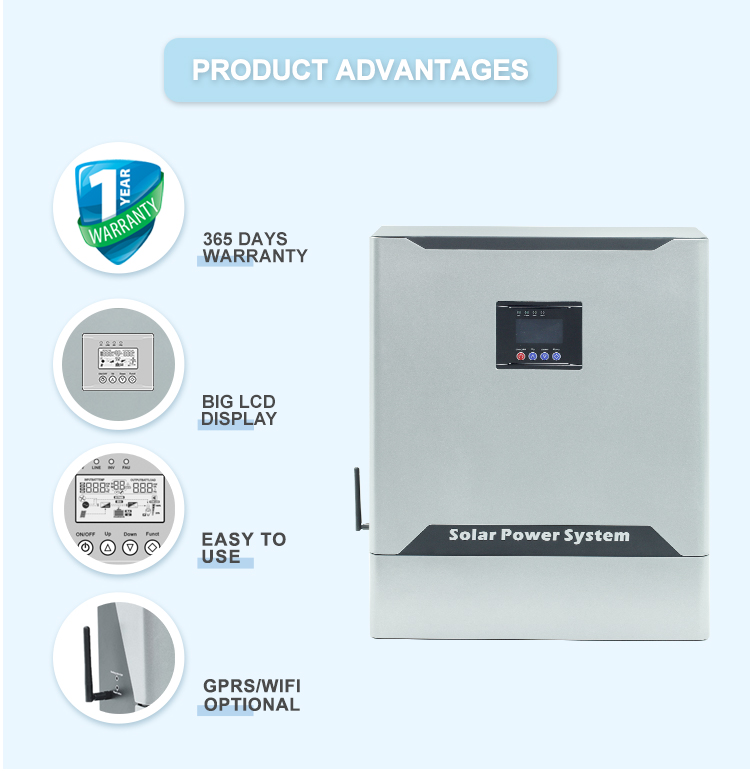

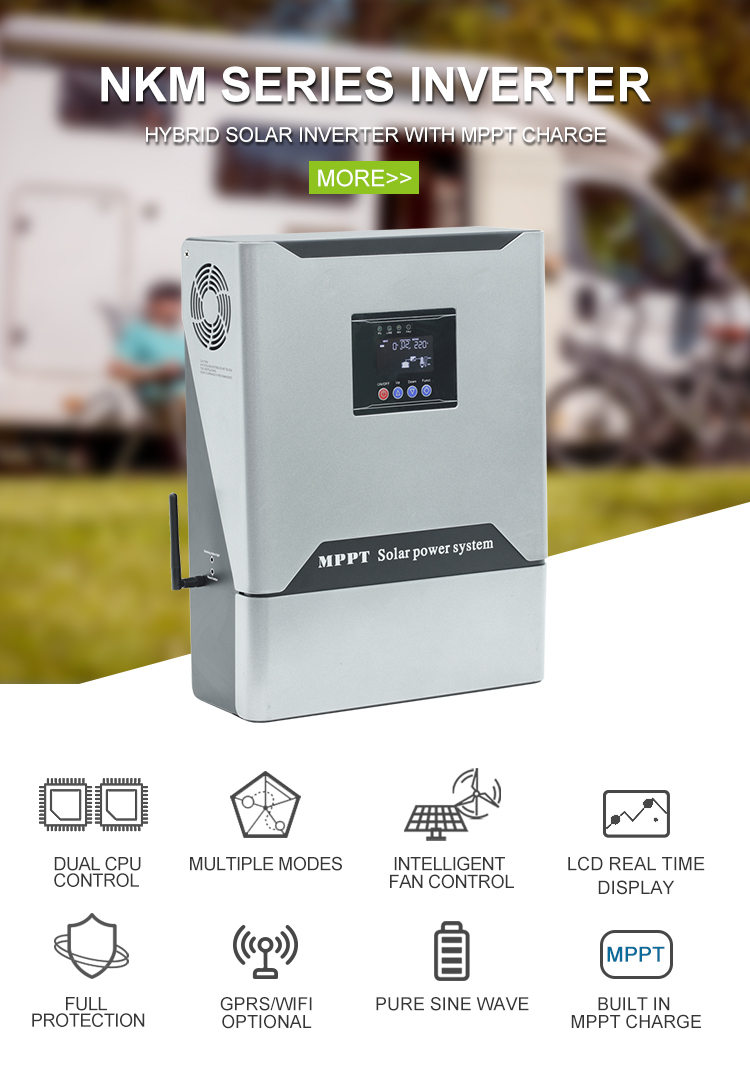

NKM series hybrid solar inverter series with double CPU intelligent control technology, MPPT controller and inverter integrated optimization solutions, is high efficiency pure sine wave inverter, to provide users the best performance. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current.


Availability:



Inquire

Model:

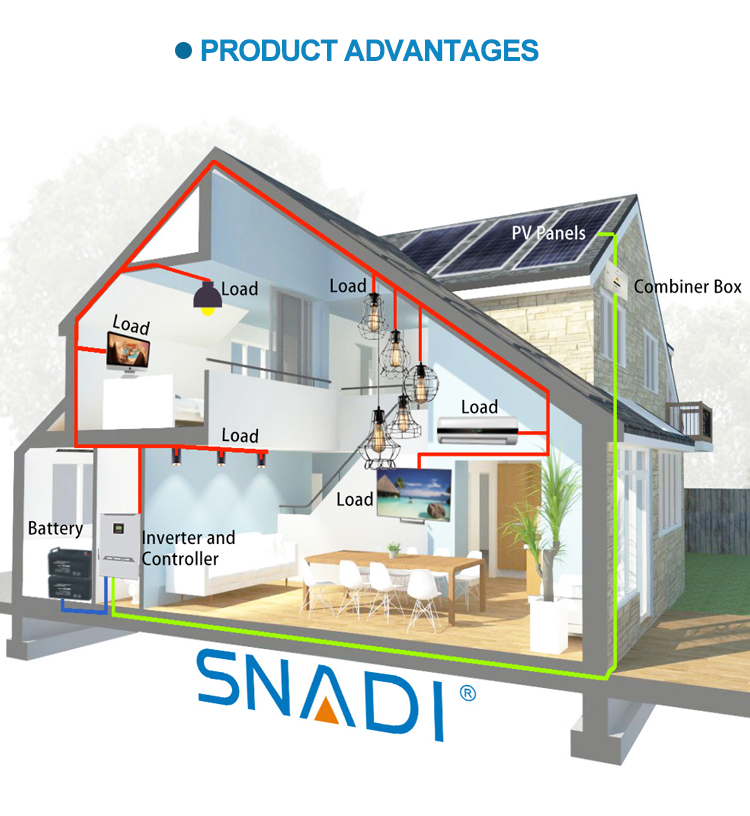

off grid solar power system
Brand:
SNADI

Product Description

300W-5KW foshan manufacture MPPT hybrid solar inverter

Model: MPPT		0.3-1KW		1.5-6KW
power rating(w)		300	700	1500	3000	5000
		500	1000	2000	4000	6000
Battery	rated voltage(VDC)	12/24		12/24/48	24/48	48/96
	Charge Current	10A MAX		30A MAX

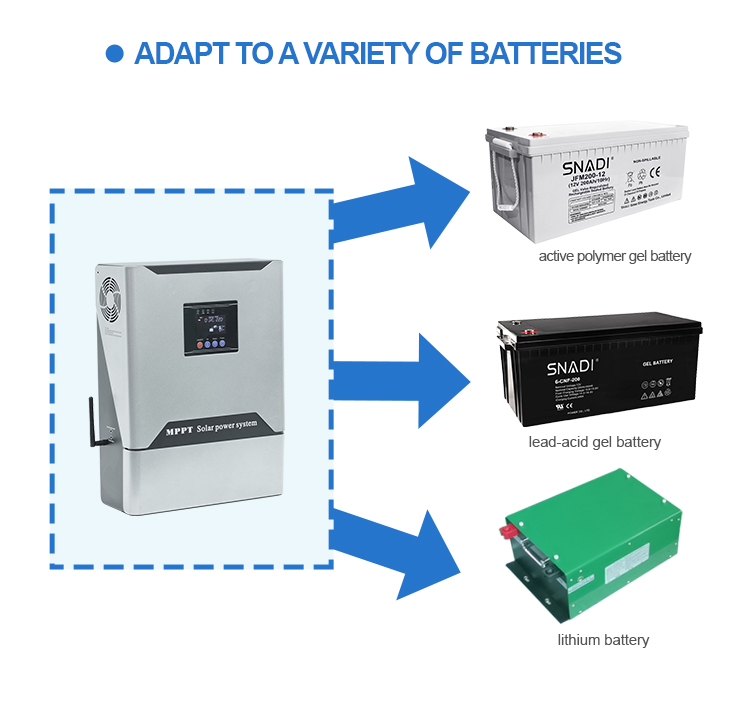

	Battery Type	Can be set
Input	Voltage Range	85-138VAC/170-275VAC
	frequency	45-65Hz
Output	Voltage Range	110VAC/220VAC; ±5%( Inverter mode)
	frequency	50/60Hz±1%( Inverter mode)

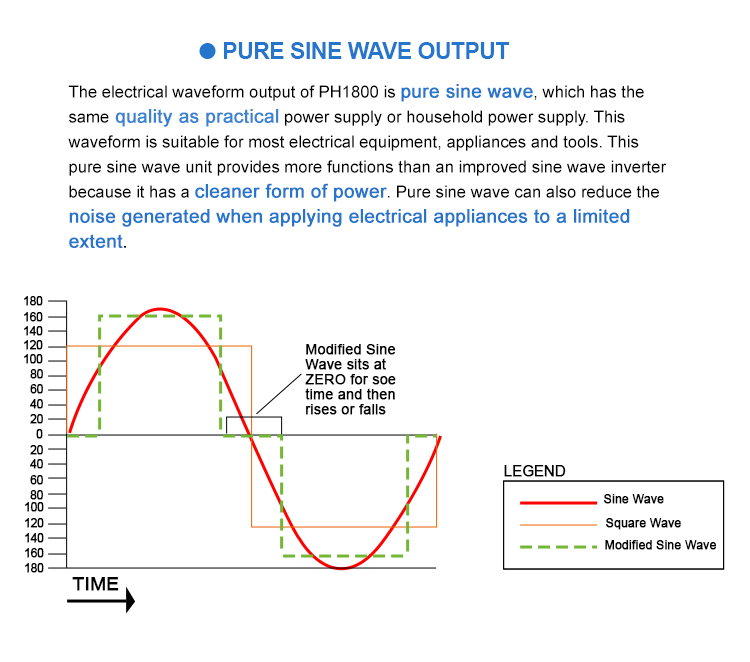

	Output wave	Pure Sine Wave
	Change time	＜10ms(Typical load)
	Efficiency	＞85%（80% Resistive load）
	overload	110-120%/30S；＞160%/300ms；

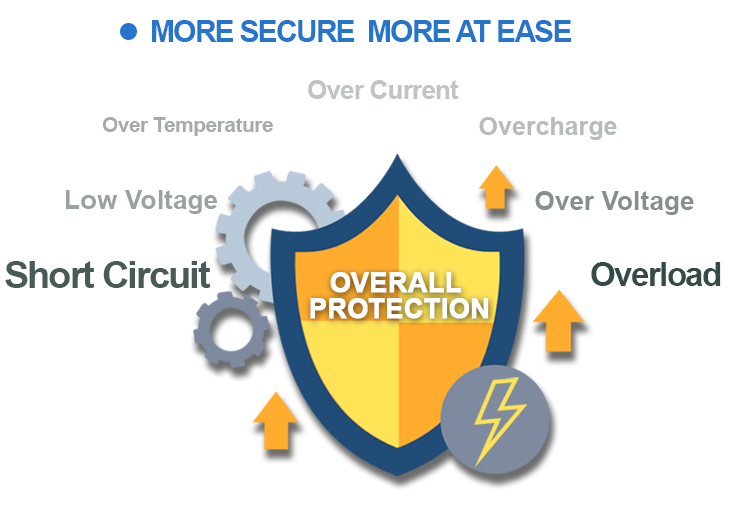

	Protection function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller	MPPT Voltage Range	12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC；120V~150VDC
	PV Power	12VDC-30A(400W); 24VDC-30A(800W)		12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) 96VDC-60A（6400W）
	Rated charge current	30A(Max)		60A(Max)
	MPPT efficiency	≥99%
	Average charging voltage(lead acid battery	12V/14.2VDC;24V/28.4VDC;48V/56.8VDC
	Floating charge voltage	12V/13.75VDC;24V/27.5VDC;48V/55VDC
Operating ambient temperature		-15-+50℃
Storage ambient temperature		-20 - +50℃
Operating / storage environment		0-90% No Condensation
Dimensions:W * D * H (mm)		420320122		520420222
Packing size: W * D * H (mm)		535435172		635535252

Recommended by seller

SNADI 5.5KW 48V 100A MPPT high frequency Hybrid solar inverter

CN¥2,166.45 - CN¥2,795.41 / Unit

1 Unit

48V/96V 6KW Pure sine wave inverter dc to ac 110V 220V low frequency inverter

CN¥2,725.53 / Unit

1 Unit

SNADI 40A 50A 60A 80A 12V 24V 48V 100 Amp MPPT solar charge controller

CN¥374.84 - CN¥1,194.41 / Piece

1 Piece

SNADI Single Phase Black IGBT 20kw Solar System Price Solar Grid Inverters Solar Inverter Hybrid

CN¥6,670.86 - CN¥6,924.99 / Unit

1 Unit

FAQ

Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.

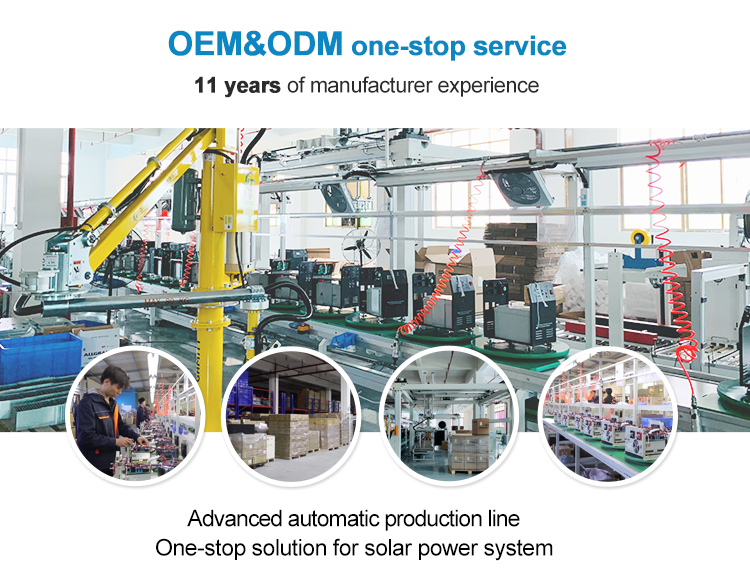

Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.

Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.

Q4: What minimum order do you require?
A4: 1 piece.

Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.

Contact us
Please contact us for more detail information without hesitate.

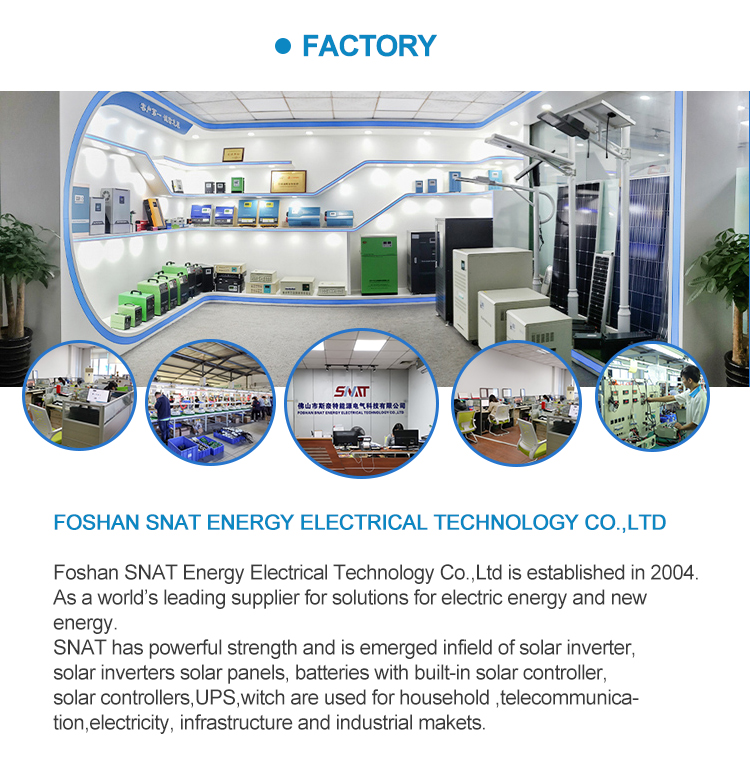

Warmly welcome to to vist our factory in Foshan city of China.
