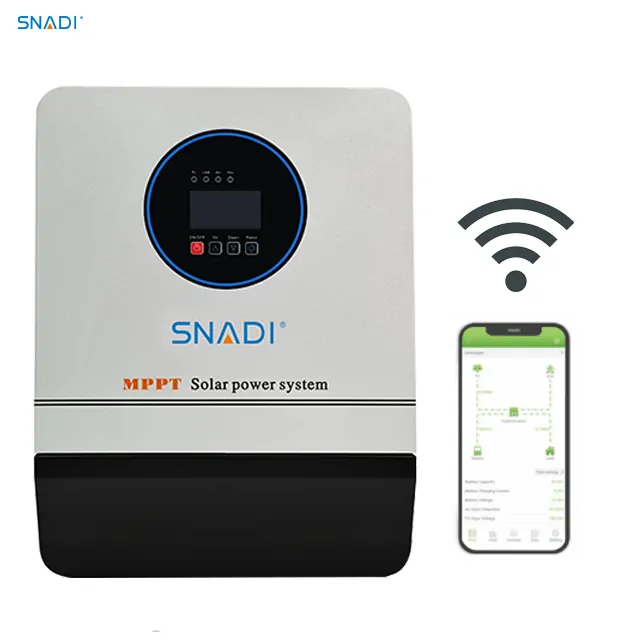

NKM-6000W
SNADI
Model:MKM | 0.3-1KW | 1.5-6KW | |||
| Power rating(w) | 300 | 700 | 1500 | 3000 | 5000 |
| 500 | 1000 | 2000 | 4000 | 6000 | |
| Battery | |||||
| Rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge current | 10A MAX | 30A MAX | |||
| Battery type | Can be set | ||||
| Input | |||||
| Voltage Range | 85/138VAC/170-275VAC | ||||
| Frequency | 45-65Hz | ||||
| Output | |||||
| Voltage range | 110VAC/220VAC;±5%（Inverter mode) | ||||
| Ferequency | 50/60Hz±1%（Inverter mode) | ||||
| Output wave | Pure Sine Wave | ||||
| Change time | <10ms(Typical load) | ||||
| Frequency | >85%(80% Resistive load) | ||||
| Overcharge | 110-120%30S;>160%/300ms; | ||||
| Protection function | Battery over-voltage and low-voltage protection,overload protection,short circuit protection,over-temperature protection | ||||
| Solar Controller | |||||
| MPPT Voltage range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | |||
| Rated charge current | 30A(MAX) | 60A(MAX) | |||
| MPPT effciency | >99% | ||||
| Average charging voltage(led acid batterty) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | ||||
| Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | ||||
| Operating ambient temperature | -15-+50℃ | ||||
| Storege ambient temperature | -20-+50℃ | ||||
| Operating/storage environment | 0-90% No Condensation | ||||
| Dimensions:W*D*H(mm) | 420*320*122 | 520*420*222 | |||
| Packing size:W*D*H(mm) | 535*435*172 | 635*535*252 | |||
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
