MAIN FEATURES

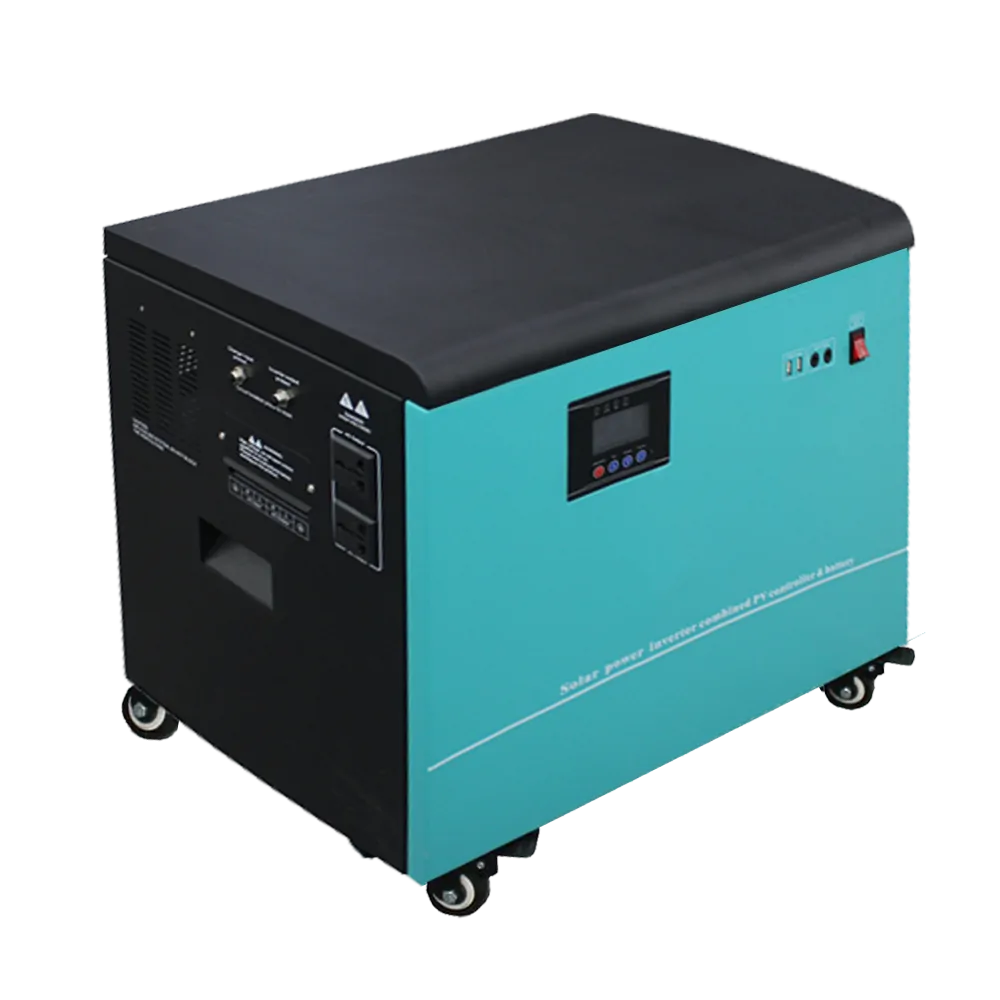

◆Combined power inverter, MPPT solar charge controller, Top Chinese Lithium Battery cell.
◆Simple installation and free maintenance to user.
◆Pure sine wave inverter power supply stable electricity to house application
◆LCD display all kinds of working status, smart fan control, safe and reliable.
◆The pure sine wave output, can adapt to various types of load.
◆The intelligent MPPT solar controller, overcharge, overdischarge protection, current limiting charging. multiple protection
| Product Specifications | ||
| Model: ALP | 2KW | |
| Inverter | Battery/System Voltage | 51.2VDC/48VDC |
| Built-in LiFePO4 Lithium | 100AH/150AH/200AH*51.2V | |
| Rated Power | 2000W | |
| Input Voltage (VAC) | 85-138VAC/1 70-2 75VAC | |
| Input Frequency (Hz) | 45-65 | |
| Output Voltage (VAC) | 110/220 | |
| Output Frequency (Hz) | 50/60 | |
| Output Wave | Pure Sine Wave | |
| MPPT Solar Input | MPPT Voltage Range | 60VDC-150VDC |
| PV Power | 1500W | |
| Rated Charge Current | 30A (Max.) | |
| MPPT Efficiency | >99% | |
| Floating Charge Voltage | 57.6VDC | |
| Maximum Power | 3200Wp | |
| DC Output | Low Voltage Recovery Voltage | 57.6VDC |
| Low Voltage Protection Voltage | 53.6VDC | |
| 5VDC USB Output | 2PCS/Max.2A | |
| 12VDC Output Ports | 2PCS/Max.2A | |
| Other Parameters | Operating Ambien Temperature | ‘-20°C-50°C |
| Storage Ambient Temperature | -25°C-55°C | |
| Operating/Storage Ambient | 0-90% No Condensation | |
| Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | |
| Display | Digital LCD | |
| Packing Dimensions: DxWxH (mm) | 620*420*580 | |
