English
| Size: | |
|---|---|
| Packge size: | |
| Power: | |
| Battery capacity: | |
| Maximum output power: | |
| DC12V: | |
| Control mode: | |

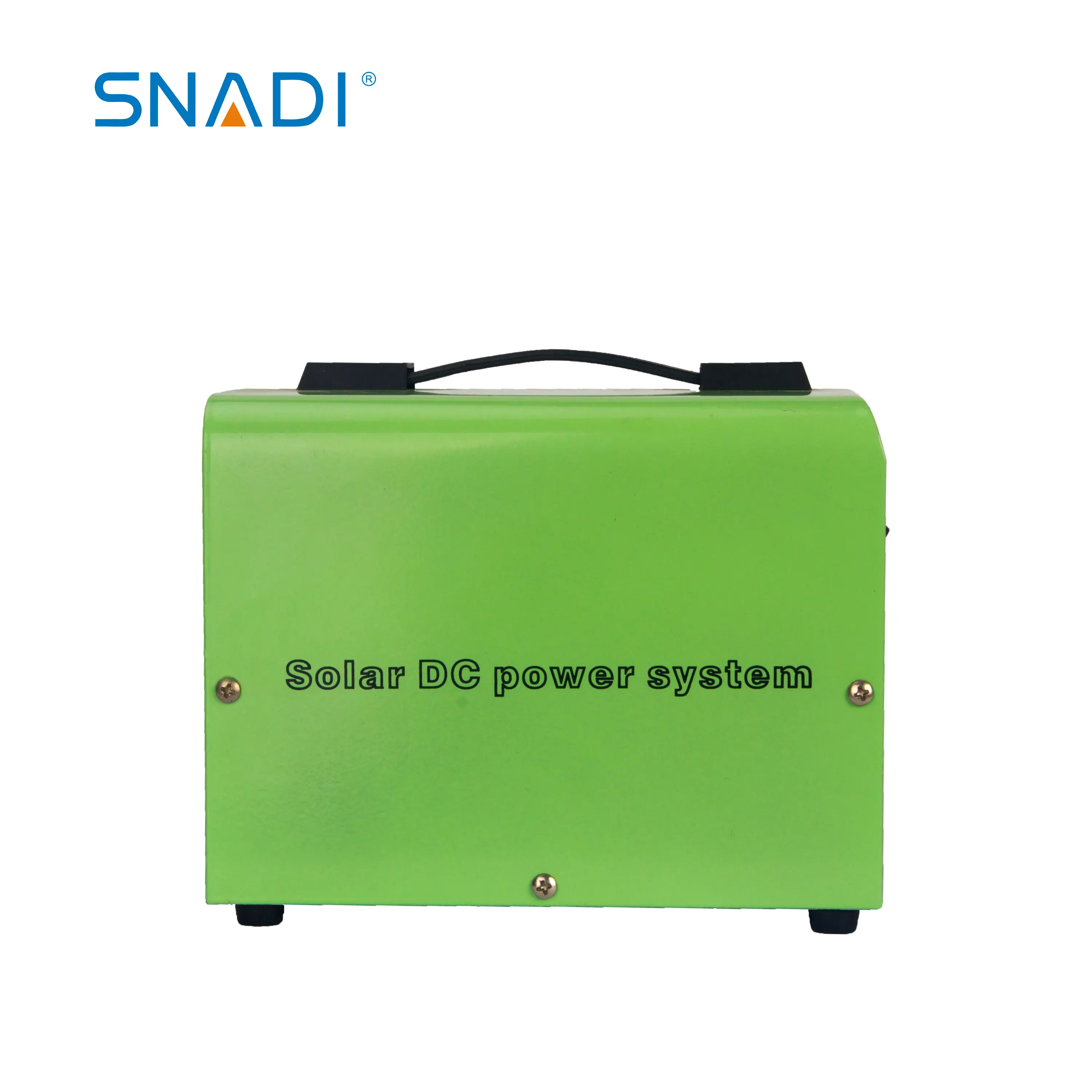

DL -20W
SNADI
| Mode:DL | 7AH | 12AH | 24AH | 50AH | 100AH | |
| solar panel | Monocrystalline dilicon or polycrystalline silicon panel of class A | |||||
| Rated power | 10W | 20W | 30W | 50W | 100W | |
| solar panel dimensions | 96*136*193 | 126*156*193 | 163*244*234 | 176*279*288 | 213*300*383 | |
| battery tpye | Deep -cycle maintenance -free lead -acid battery | |||||
| Batterycapacity | 12V/7AH 12V/12AH | 12V/24AH 50AH | 100AH | |||
| Controller | solar mode | Efficient PWM | ||||
| Charge current | 5A/12V 10A/12V | |||||
| protection function | overcharge protection,overdischarge protection, electronic circuit short circuit protection,overload protection | |||||
| Voltage of overcharge protection | 14.3v | |||||
| voltage of boosting charge | 14.0v | |||||
| Voltage of floating charge | 13.8V;×2/24V;×4/48V;×8/96V; | |||||
| Display of nixie tube | Current voltage of the battery | |||||
| voltage of overdischarge protection | 10.5v | |||||
| indication of LEDs | charge indication ,load indiction ,and battery indication | |||||
| DC output | maximum output power | 60W(12V/5A) 120W (12V 10A) | ||||
| DC12v | 2 Output port 4 output port 5 output port 6 output port | |||||
| DC5VUSB | 1USB output port (MAX.2A) 2USB output port(MAX .3A) | |||||
| accessories included | 12VDC LED indicator | A 3w LED and a 5W LED(inculding 2 lamp holders ,a 3M lamp wire and a 5w lamp wire | TWO 3w LEDs and two 5W LEDs (including 4 lamp holders , two 3m amp wires and two 5w lamp wire ) | |||
| USB charge line | A universal charge line | |||||
| solar panel bracket | A set (including 2 pieces) | |||||
| electric wire of the solar panel | 5M | |||||
| AC charge | An optional accessory when there is no solar power supply and charging by mains supply | |||||
FAQ:
Q1: What is your minimum quanlity order?
A: One set.
Q2: Are you trading company or manufacturer ?
A:We are a manufacturer in China. We have own factory in Foshan.
Q3: What is your term of payment?
A: 30% TT for deposit, balance before the shipping.
Q4:Can you supply the sample?
A: Yes. we can supply the sample order for testing .
Q5: When you can delivery the goods?
A: Sample order 3-5 days ,mass order usually 15-25 days according to the quantity.
Q6: Is this instalation easy?
A: Yes , We will provide install drawing and user manual ,and you can make a video call to get technical support.
Q7: Can you customized it for us?
A: Yes ,we can customize the logo ,color ,size ...
